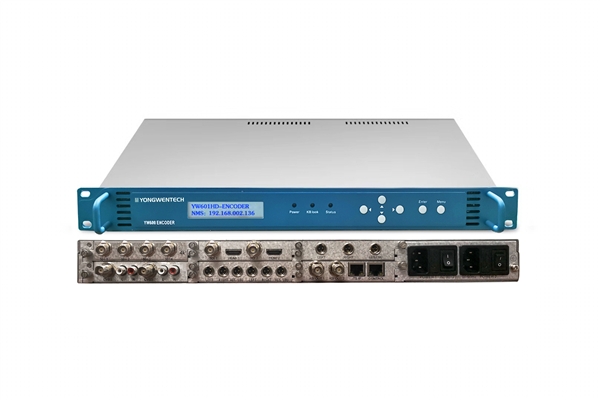

YW600 is a high integrated professional Digital Head-end equipment with 6 pluggable module which include 4x3G-SDI(4K-HEVC/H.265 UHD) encoding module, HD-SDI encoding module, digital/analog audio encoding module, analog video encoding module.Each module can be used and configured independently, so it can supply your more functional combination which will give cost effective solution for Digital TV Broadcasting Service which are applied to DVB-S, DVB-T, DVB-T, IPTV and other streaming media system popularly.

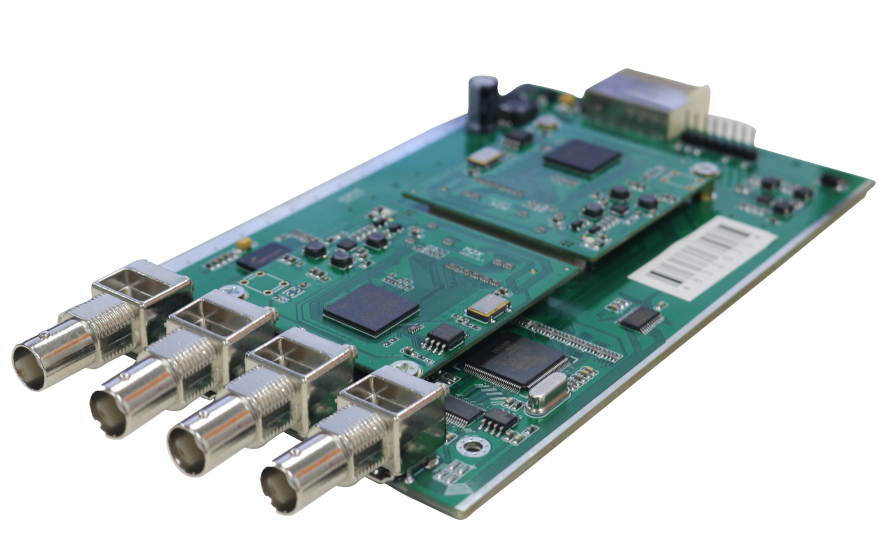

 HEVC/4K Encoder Module | input | 4x3G-SDI BNC,75 Ω | Video Encoding | H.265 (HEVC)/H.264 (AVC)/MPEG-2 1 channel 4K encoding/4 channels 2K encoding | Resolution | 2160p, 1080p, 1080i, 720p, 576p, 576i, 480i | Bit Rate | 10bit£¬8bit£¬4:2:2£¬4:2:0 £¬HDR10£¬HLG | Audio Encoding | MPEG-1 Layer II MPEG-2 AAC Linear PCM | Audio Encoding | 4 independent SDI embedded audio | Bit Rate | 2-80Mbps | delay | Low delay mode minimum 80ms | Rate Control | CBR/VBR |

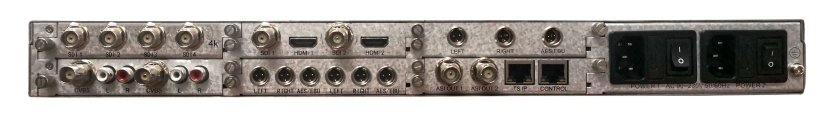

Out put | ASI output | 2¡ÁBNC 75¦¸ | IP output | 1x100/1000Base-T | Local and remote management | Interface | 1¡ÁRJ-45£¬10/100 Base-T | Remote management | HTTP Web | Local management | Front pannel button and LED | Device upgrade | IP | Miscellaneous | Dimension (W¡ÁL¡ÁH) | 450*350*44mm | Net Weight | 5KG | Power | AC 90V¡«250V£¬50/60Hz | Consumption | £¼20W | Temperature | 0~45¡æ(work)£»-10~60¡æ(Storage) | Humidity | 10~90%(Non-Condensing) |
|
