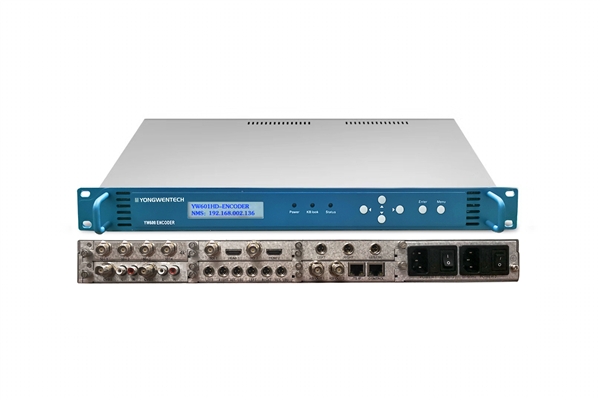

YW600 is a high integrated professional Digital Head-end equipment with 6 pluggable module which include 4x3G-SDI(4K-HEVC/H.265 UHD) encoding module, HD-SDI encoding module, digital/analog audio encoding module, analog video encoding module.Each module can be used and configured independently, so it can supply your more functional combination which will give cost effective solution for Digital TV Broadcasting Service which are applied to DVB-S, DVB-T, DVB-T, IPTV and other streaming media system popularly. Main Features 6-card insertion chassis support up to 10channels HD/SD encoding Multiple input formats including 4x3GUHD, HD/SD SDI, HDMI, CVBS, analog audio, AES/EBU Multiple input resolutions including 2160P,1080P, 1080i, 720P, 576, 480 I/O card support both ASI and IP output with RTP / UDP, Unicast / Multicast on both SPTSand MPTS Front panel LCD/ keyboard and HTTP WEB for controlling, and dual power supplies
Specifications Out put | ASI output | 2¡ÁBNC 75¦¸ | IP output | 1x100/1000Base-T | Local and remote management | Interface | 1¡ÁRJ-45£¬10/100 Base-T | Remote management | HTTP Web | Local management | Front pannel button and LED | Device upgrade | IP | Miscellaneous | Dimension (W¡ÁL¡ÁH) | 450*350*44mm | Net Weight | 5KG | Power | AC 90V¡«250V£¬50/60Hz | Consumption | £¼20W | Temperature | 0~45¡æ(work)£»-10~60¡æ(Storage) | Humidity | 10~90%(Non-Condensing) |

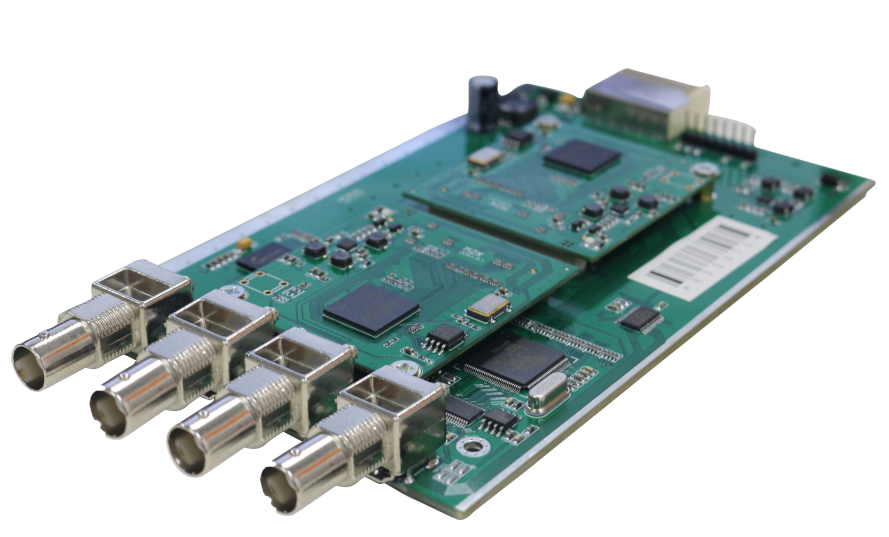

HEVC/4K Encoder Module | input | 4x3G-SDI BNC,75 Ω | Video Encoding | H.265 (HEVC)/H.264 (AVC)/MPEG-2 1 channel 4K encoding/4 channels 2K encoding | Resolution | 2160p, 1080p, 1080i, 720p, 576p, 576i, 480i | Bit Rate | 10bit£¬8bit£¬4:2:2£¬4:2:0 £¬HDR10£¬HLG | Audio Encoding | MPEG-1 Layer II MPEG-2 AAC Linear PCM | Audio Encoding | 4 independent SDI embedded audio | Bit Rate | 2-80Mbps | delay | Low delay mode minimum 80ms | Rate Control | CBR/VBR |

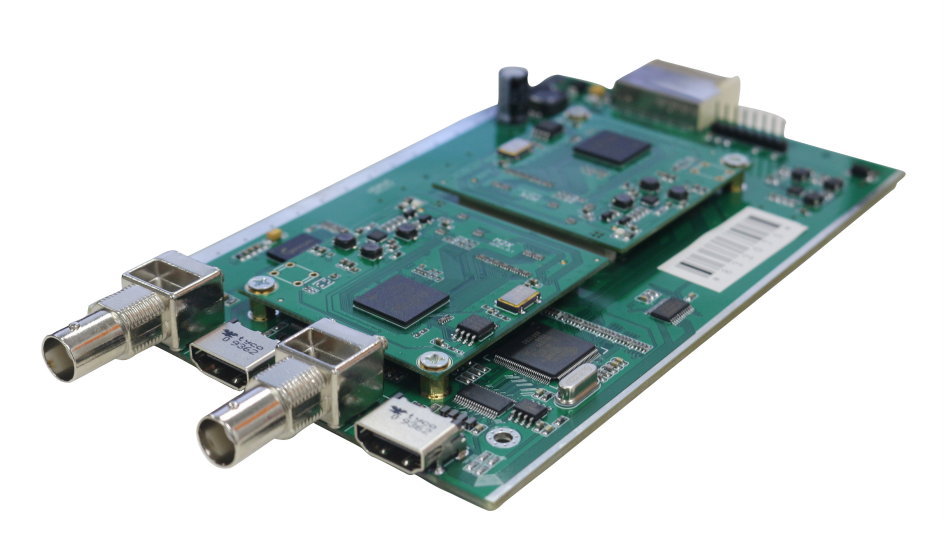

 MPEG2/H.264 Encoder Module | input | 2 x HD/SD-SDI/HDMI | Video Encoding | H.264£¨MPEG-4 part 10£©High profile/Level 4.0 HD MPEG-2 Main profile SD | Resolution | 1080i, 720p, 576p, 576i, 480i | Bit Rate | 8bit£¬4:2:0 | Audio Encoding | MPEG-1 Layer II MPEG-2 AAC Linear PCM | Sampling Rate | 48KHz | Bit Rate | 2-20Mbps | Rate Control | CBR/VBR |
H.264£¨1080P£©Encoder Module | Input | 2 x HD/SD-SDI/HDMI | Video Encoding | H.264£¨MPEG-4 part 10£©High profile/Level 4.0 HD | Resolution | 1080P, 1080i, 720p, 576p, 576i, 480i | Bit Rate | 8bit£¬4:2:0 | Audio Encoding | MPEG-1 Layer II MPEG-2 AAC Linear PCM | Sampling Rate | 48KHz | Bit Rate | 2-20Mbps | Rate Control | CBR/VBR |

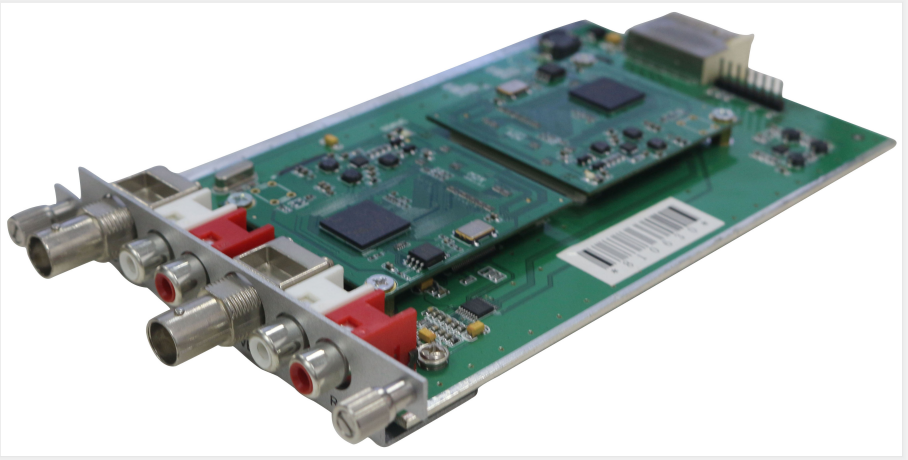

MPEG2 Encoder Module | input | 2xBNC video£¬4xRCA | Video Encoding | H.264/MPEG2 | Resolution | 576i, 480i | Audio Encoding | MPEG-1 Layer II MPEG-2 AAC Linear PCM | Sampling Rate | 48KHz | Rate Control | CBR/VBR |

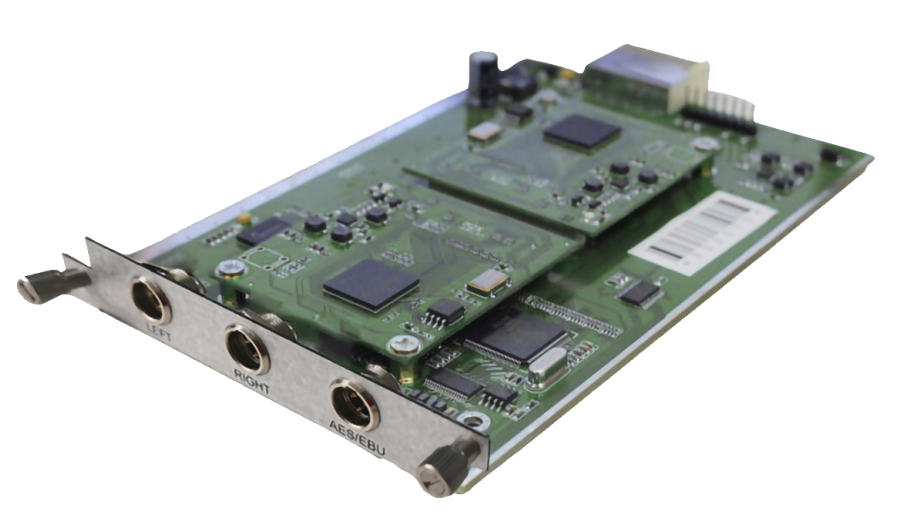

Audio Encoder Module | input | 1 x Mini CANNON£¬2 x Analog Mini CANNON 2 x Mini CANNON£¬4 x Analog Mini CANNON
| Audio Encoding | MPEG-1 Layer II MPEG-2 AAC Linear PCM | Sampling Rate | 48KHz | Bit Rate | 32Kbps~384Kbps |
|
