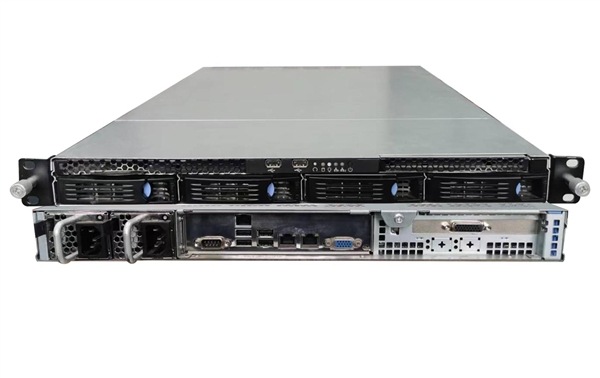

YW9500 4K HEVC/H.265 Encoder /Transcoder is a broadcast level encoder that can support multi-screen, like TV, PC, PAD, Phone, etc. It supports various input interface including CVBS, SD/HDSDI, HDMI, IP, ASI, and support various IP output protocol and ASI output. As transcoder, it supports convert MPEG-2, MPEG-4, H.264, H.265, video format to MPEG-2/MPEG-4/H.264/H.265 and WMV encoding. As encoder, it supports 16 channels encoding of HDSDI/3G-SDI video/audio input. This product can be used widely in DVB /IPTV /Internet TV and Mobile TV field. Input & Output Video Input Format: MPEG1/MPEG2/MPEG4/H.264/H.265/WMV/DIVX/M-JPEG/RMVB Audio Input Format: WAV/MPGA/AAC/WMA/MP3/AMR/AC3/E-AC3 Video Encoding Output: MPEG2/MPEG4/H.264/H.265 Audio Encoding Output: MPGA/AAC/HE-AAC/WMA/MP3/AMR/AC3/E-AC3/DRA/PCM/DTS IP Input Protocol: UDP/RTP/RTSP/RTMP/MMS/HTTP/SRT; File over Samba/NFS IP Output Protocol: TS over UDP/RTP/HTTP/RTSP/SRT; FLV over HTTP/RTMP; HTTP Live Streaming; 3GP over RTP; MMS; File over Samba/NFS; MPEG-DESH Support NDI FULL protocol input/output, support NDI HX and NDI HX2 3G*4 SDI support 2SI and SQD standard Video input supports 4K resolution, BT.2020 color gamut, 10bit bit depth, 50fps, 60fps frame rate, HLG/PQ dynamic brightness curve, and 4:2:2/4:2:0 sampling format Support online monitoring function of input signal source, can view detailed information of signal source status, including source address, program name, current status, video information, video bit rate, audio information, audio bit rate Supports monitoring of stream output information, including stream protocol, output status, current video bit rate, average bit rate, output delay, packaging overhead, current frame rate, average frame rate; total output packets, packet loss information
Video Encoding Rate control: Target VBR/Capped VBR/Near CBR and CBR Resolution: from 80x64 to 4K(4096x2160), can be customized Dynamic Video Bitrate: IP output keeps continuous when modifying video bitrate For SDI input: if input signal is lost, color bar will be outputted instead, and customized subtitle overlay is supported on the color bar For SDI input, it supports multi-track encoding, and input channels can be freely specified; at the same time, it supports Dolby transparent transmission, which supports transparent transmission of some channels and encoding of some channels In the case of supporting a sound input, the encoding outputs audio in two different formats, such as AC3 and MPGA Supports Audio channel duplication, channel transformation and channel mixing Support SDR to HDR standard and HDR to SDR standard, support mutual conversion output between BT.709 (high profile) and BT.2020, the color of the output live signal after conversion has no obvious distortion Supports content-aware encoding (CAE) capabilities, supports automatic identification and classification of scene content, and encodes rate control algorithms that support frame-level content Support image processing: deinterlacing, denoising, resizing (filtering - inserting black borders), sharpening, brightness, contrast, saturation, hue, dynamic brightness adjustment
Value Added Service Support multiple dynamic station logo overlay, support multi-channel subtitle overlay Support graphic packaging: insert station logo (BMP/PNG), insert animation (TGA or GIF), insert dynamic text Support rolling output function, perfect video insertion function, seamless screen switching based on video frame Real-time recording to local hard disk or network storage; multiple recording formats: TS/MP4/MPG/FLV/3GP Support ultrasonic (bandwidth) technology, including ultrasonic identification information in the output stream for copyright protection Up to 48 hours delay, adjustable Support the interface method to dynamically cut the live screen Supports dynamic adjustment of live broadcast delay by interface, generates and displays it in real time in the form of thumbnails, effectively improving the accuracy of delay setting Support image processing: deinterlacing, denoising, resizing (filtering - inserting black borders), sharpening, brightness, contrast, saturation, hue, dynamic brightness adjustment
Safety Management Support cluster management, support unified management and monitoring tools, manage and monitor resources such as nodes, clusters, and running projects Simultaneous output of multi-encapsulation, multi-protocol, and multi-backup streams; built-in whitelist security function Supports pad mechanism, when the main and standby input sources fail, the video shim can be automatically or manually switched for playback, and the shim supports pictures and video files Up to four levels of IP input backup: main, backup, auxiliary, pad. Support manual, automatic, semi-automatic input switching mode. Support shim playout. Support predefined parameters and custom parameter templates, support parameter batch modification (modify all channel specified parameters at one time) It can be controlled through WEB interface or SNMP software, and the WEB management interface can visually display the opening/closing of product functions Circular logging is supported inside the device, which can be accessed through the WEB interface System Backup Support: 1+1 or N+M Various Applications: DVB/IPTV/WebTV/Mobile TV/Offline Transcoding/…
Video Horizontal Resolution Video Vertical Resolution Video Encoding Format H.264.H.265/AVC Main Profile Level1-3 H.264.H.265/AVC High Profile Level4 MPEG-2 Main Profile, Main Level; MPEG-2 Main Profile, High Level WMV:WMV1/WMV2/WMV3(Microsoft WMV9)
Audio Encoding Format MPEG1 Layer II AAC AC3 WMA MP3 AMR
Video Input interface 3G*SDI HDSDI CVBS HDMI IP/ASI
Audio Input interface Input interface Output Interface Physical and Power
|
