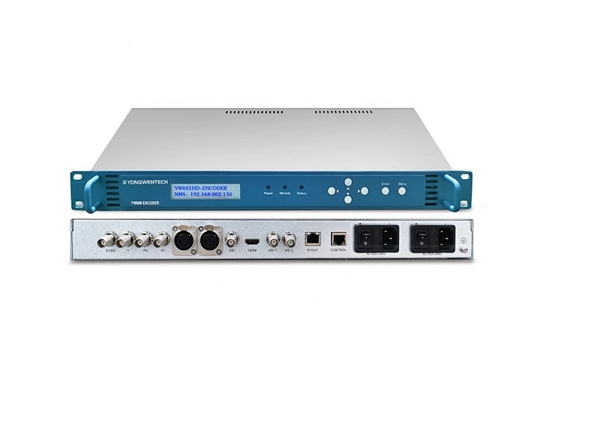

YW601HD is a professional real-time encoder compliant with H.264/AVC With multiple video/ audio inputs including 3G-SDI,HD/SDSDI, HDMI, CVBS, YPbPr, XLR, it can support dual ASI and IP outputs at the same time. Friendly management system and SNMP programmable interface facilitate centralized management of multiple equipments. Specificatons Video input | CVBS input | 1¡ÁBNC 75¦¸ | YPbPr input | 3¡ÁBNC 75¦¸ | SD/HD-SDI input | 1¡ÁBNC 75¦¸ | HDMI input | 1¡ÁHDMI | Audio input | Analog audio input | 1XLRCANNON | SDI embedded audio | 1¡ÁBNC | Video Encoder | Encoding | H.264£¨MPEG-4 part 10£©High profile/Level 4.0 HD | Resolution | 1920 x 1080 x 60p/50p 1920 x 1080 x 60i/50i 1280 x 720 x 60p/50p 720 x 480 x 60i 720 x 576 x 50 | Bit Rate | 2-20Mbps | Rate Control | CBR/VBR | Audio Encoder | Encoding | MPEG-1Layer2/MPEG2/AAC Audio | Sampling Rate | 48KHz | Bit Rate | 32Kbps~384Kbps | output | ASI output | 2¡ÁBNC 75¦¸ | IP output | 1x100/1000Base-T | Local and remote management | Interface | 1¡ÁRJ-45£¬10/100 Base-T | Remote management | HTTP Web | Local management | Front pannel button and LED | Device upgrade | IP | Miscellaneous | Dimension (W¡ÁL¡ÁH) | 450*280*44mm | Net Weight | 3KG | Power | AC 90V¡«250V£¬50/60Hz | Consumption | £¼20W | Temperature | 0~45¡æ(work)£»-10~60¡æ(Storage) | Humidity | 10~90%(Non-Condensing) |
|
