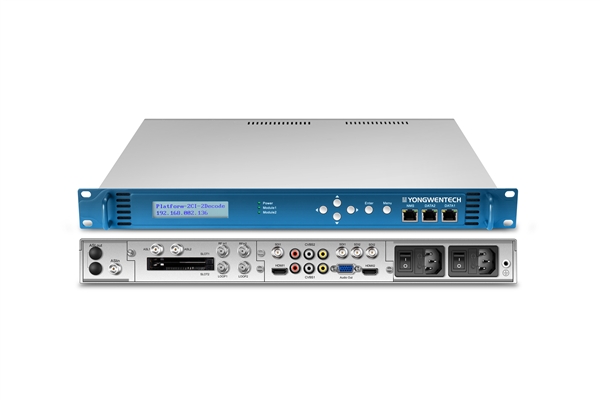

YW202HD 2 in 1 IRD is a pluggable structure design device. It supports 2 Tuners, 2 IP and 1 ASI input, 2 channels decoding output with AVS+/H.265/H.264/MPEG2 decoding format. With it’s abundant output interface, it support 4 HD-SDI, 2 HDMI, 2 CVBS, 2 AES/EBU and 2 analog stereo output. IP (2*MPTS/24*SPTS) output through Dual Gigabit Ethernet output. It also support 4K/1080P/1080I/720P/576I/480I resolution. Key Features Support CVBS/HDMI/SD/HD-SDI/AES/EBU/Analog Stereo/ASI/IP output Support DRA/AC3/EAC3/AAC/MPEG audio decoding Support AVS+/H.265/H.264/MPEG2 video decoding Support AC3 passthrough 2 independent CAM card can decrypt two programs Support Biss_1/Biss_E descrambling mode Support Closed caption/subtitle/Teletext function Resolution can be automatically identified or manually set Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD B/S based web management Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm
Specifications RF input | DVB-S/S2 input | Input port | 2*RF input, 2*RF loopout, 75Ω | Input frequency | 950~2150MHz | Input level | -25~-65dBm | Symbol rate | 1~45Msps | LNB power supply | 13V, 18V, off , 22KHz | Constellation | QPSK, 8PSK | DVB-T/T2 input | Input port | 2*RF input, 2*RF loopout, 75Ω | Input frequency | 44~1002MHz | Input level | -20~-100dbm | Modulation mode | DVB-T: QPSK, 16/64 QAM DVB-T2: QPSK, 16/64/256 QAM | Bandwidth | 6/7/8 MHz | DVB-C input | Input port | 2*RF input, 2*RF loopout, 75Ω | Input frequency | 48~862MHz | Input level | 45~75dbuV | Modulation mode | 16/32/64/128/256QAM | ASIin/ASI output | Interface | 1*BNC input, 75Ω | Interface | 2*BNC output, 75Ω | Bitrate | ≤200Mb/s | TS over IP | Interface | 2*RJ-45, 1000 Base-T | Effective rate | 900Mb/s (1000 Based-T) | IP protocol | UDP/RTP, Unicast, Multicast, IGMP(V1,2,3) | HDMI output | Interface | 2*HDMI port(support 4K resolution and 1.4a frame rate) | Resolution and frame rate | 4K30/1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/480P/480I | Video decoding | Decoding format | MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+ | Audio decoding | Decoding format | MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | HD/SD-SDI output | Interface | 4*BNC, 75Ω | SD-SDI output | SMPTE 259M, 270Mb/s(10bit) | HD-SDI output | SMPTE 292M, 1.485Gbit/s(20bit) | Analog audio output | Interface | 2*RCA, 2xXLR | Output audio format | Left, Right, Dual Mono, Stereo | Digital audio output | Interface | 2*AES/EBU | Analog video output | Video interface | 2*RCA, 75Ω | CVBS format | PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ | Data output | Subtitle | DVB/EBU | Teletext | DVB/EBU | Closed Caption | EIA 608, EIA 708, EIA 608-to-708 | Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | Remote management | HTTP Web | Local management | Front pannel button and LED | Miscellaneous | Dimension (W×L×H) | 450mm×350mm×44mm | Net Weight | 5Kg | Power | AC 90V~250V, 50/60Hz | Consumption | 24W(Power supply without LBN) |
|
