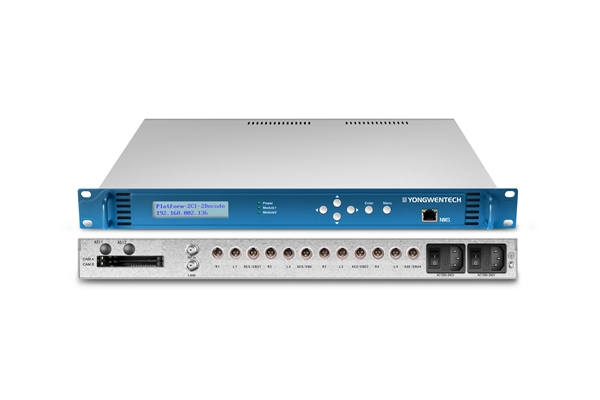

With RF input, YW201-4A audio receiver and decoder supports multiple decoding standards including AVS+/H.265/H.264/MPEG2, and supports multiple audio formats as DRA/AC3/EAC3/AAC/MPEG. Meanwhile it provides 4 channels XLR analog stereos and 4 channels AES/EBU outputs. Key Features Support RFinput Support AES/EBU/analog stereo/ASI/IP Support DRA/AC3/EAC3/AAC/MPEG audio decoding Support AVS+/H.265/H.264/MPEG2 video decoding CAM card can decrypt two programs Resolution can be automatically identified or manually set Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD B/S based web management Support signal input strength and SNR dynamic monitoring and support signal lock-lose alarm
Specifications RF input | DVB-S/S2 input | Input port | 1*RF input, 1*RF loopout, 75Ω | Input frequency | 950~2150MHz | Input level | -25~-65dBm | Symbol rate | 1~45Msps | LNB power supply | 13V, 18V, off , 22KHz | Constellation | QPSK, 8PSK | DVB-T/T2 input | Input port | 1*RF input, 1*RF loopout, 75Ω | Input frequency | 44~1002MHz | Input level | -20~-100dbm | Modulation mode | DVB-T: QPSK, 16/64 QAM DVB-T2: QPSK, 16/64/256 QAM | Bandwidth | 6/7/8 MHz | DVB-C input | Input port | 1*RF input, 1*RF loopout, 75Ω | Input frequency | 48~862MHz | Input level | 45~75dbuV | Modulation mode | 16/32/64/128/256QAM | Audio decoding | Decoding format | MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | Analog audio output | Interface | 4xXLR(MiniCANNON) | Output audio format | Left, Right, Dual Mono, Stereo | Digital audio output | Interface | 4*AES/EBU(MiniCANNON) | Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | Remote management | HTTP Web | Local management | Front pannel button and LED | Miscellaneous | Dimension (W×L×H) | 450mm×280mm×44mm | Net Weight | 3Kg | Power | AC 90V~250V, 50/60Hz | Consumption | 24W(Power supply without LBN) |
|
