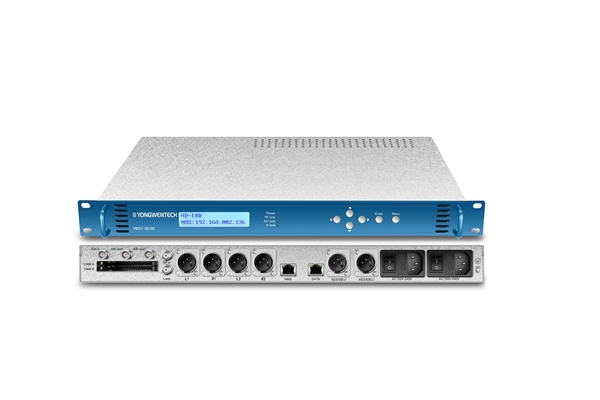

YW201-2A Audio Receiver and Decoder

With RF, ASI and IP inputs, YW201-2A Audio receiver and decoder supports multiple decoding standards including AVS+/H.265/H.264/MPEG2, and multiple audio formats as DRA/AC3/EAC3/AAC/MPEG

Key Features

  • Support RF/IP/ASI input

  • Support AES/EBU/analog stereo/ASI/IP

  • Support DRA/AC3/EAC3/AAC/MPEG audio decoding

  • Support AVS+/H.265/H.264/MPEG2 video decoding

  • 2 independent CAM card can decrypt two programs

  • Resolution can be automatically identified or manually set

  • Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD

  • B/S based web management

  • Support signal input strength and SNR dynamic monitoring and support signal lock-lose alarm

Specifications





RF input





DVB-S/S2 input

Input port

1*RF input, 1*RF loopout, 75Ω

Input frequency

950~2150MHz

Input level

-25~-65dBm

Symbol rate

1~45Msps

LNB power supply

13V, 18V, off , 22KHz

Constellation

QPSK, 8PSK

DVB-T/T2 input

Input port

1*RF input, 1*RF loopout, 75Ω

Input frequency

44~1002MHz

Input level

-20~-100dbm

Modulation mode

DVB-T: QPSK, 16/64 QAM

DVB-T2: QPSK, 16/64/256 QAM

Bandwidth

6/7/8 MHz



DVB-C input

Input port

1*RF input, 1*RF loopout, 75Ω

Input frequency

48~862MHz

Input level

45~75dbuV

Modulation mode

16/32/64/128/256QAM

ASI input/output

Input/output interface

1*BNC input, 75Ω; 2*BNC output, 75Ω

Input/output bitrate

≤200Mb/s



TS over IP

Interface

1*RJ-45, 10/100 Base-T

Effective rate

90Mb/s (100 Based-T)

Frame length

(1-7)x188 adjustable byte

IP protocol

UDP/RTP, Unicast, Multicast

Audio decoding

Decoding format

MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3

Analog audio output

Interface

2xXLR(CANNON)

Output audio format

Left, Right, Dual Mono, Stereo

Digital audio output

Interface

2*AES/EBU(CANNON)

Local and remote management

Interface

1*RJ-45, 10/100 Base-T

Remote management

HTTP Web

Local management

Front pannel button and LED

Miscellaneous

Dimension (W×L×H)

450mm×280mm×44mm

Net Weight

3Kg

Power

AC 90V~250V, 50/60Hz

Consumption

24W(Power supply without LBN)
