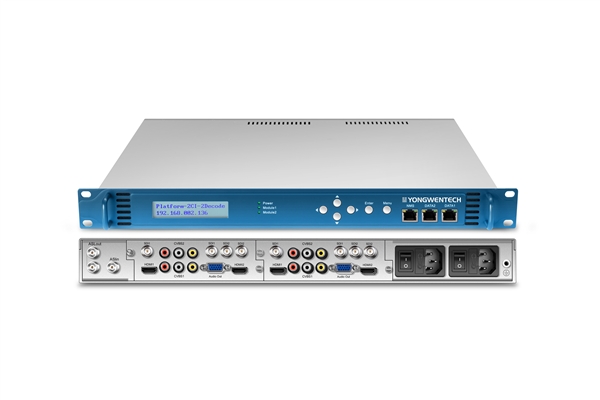

YW204HD 4 in 1 IRD support 4 MPTS and 1 ASI input, 4 channels decoding output with AVS+/H.265/H.264/MPEG2 decoding. It also support 8 HD-SDI/4 HDMI/4 CVBS/4 AES/EBU and 4 analog stereo output, and support 4K/1080P/1080I/720P/ 576I/480I resolution. Key Features Support IP/ASI input Support CVBS/HDMI/SD/HD-SDI/AES/EBU/Analog Stereo/ASI/IP input Support DRA/AC3/EAC3/AAC/MPEG audio decoding Support AVS+/H.265/H.264/MPEG2 video decoding Support AC3 passthrough Support Biss_1/Biss_E descrambling mode Support Closed caption/subtitle/Teletext function Resolution can be automatically identified or manually set Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD B/S based web management Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm
Specificatons ASI Input/output | ASI input Interface | 1*BNC input, 75Ω | ASI output interface | 2*BNC input, 75Ω | Standard | DVB-ASI, EN50083-9 | Bitrate | ≤200Mb/s | IP Input/output | Interface | 2*RJ-45, 1000 Base-T | Effective rate | 900Mb/s (100 Based-T) | Frame length | (1-7)x188 adjustable byte | IP protocol | UDP/RTP, Unicast, Multicast | HDMI output | Interface | 4*HDMI port(support 4K resolution and 1.4a frame rate) | Resolution and frame rate | 4K30/1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/480P/480I | Embed audio | 1 stereo | Video decoding | Decoding format | MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+ | Audio decoding | Decoding format | MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | HD/SD-SDI output | Interface | 8*BNC, 75Ω | SD-SDI output | SMPTE 259M, 270Mb/s(10bit) | HD-SDI output | SMPTE 292M, 1.485Gbit/s(20bit) | output | Level 800mV+-20 p-p | Analog audio output | Interface | 4*RCA, 4*XLR | Output audio format | Left, Right, Dual Mono, Stereo | Digital audio output | Interface | 4*AES/EBU | Analog video output | Video interface | 4*RCA, 75Ω | Output Level | 1.0Vp-p±5% | CVBS format | PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ | Video SNR | ≥56dB | Video sync amplitude | 300±20mVP-P | Video amplitude characteristic | ±0.8Db(4.8MHz); ±1dB(4.8-5MHz); ±0.5/-4dB(5.5MHz) | Video output amplitude | 700±30mVP-P | Differential gain | ≤8% | Data output | Subtitle | DVB/EBU | Teletext | DVB/EBU | Closed Caption | EIA 608, EIA 708, EIA 608-to-708 | Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | Remote management | HTTP Web | Local management | Front pannel button and LED | Device upgrade | IP or USB | Miscellaneous | Dimension (W×L×H) | 450mm×350mm×44mm | Net Weight | 5Kg | Power | AC 90V~250V, 50/60Hz | Consumption | 24W(Power supply without LBN) | Temperature | 0~45℃(work)；-10~60℃(Storage) | Humidity | 10~90%(Non-Condensing) |
|
