YW202HD 2in1 IRD

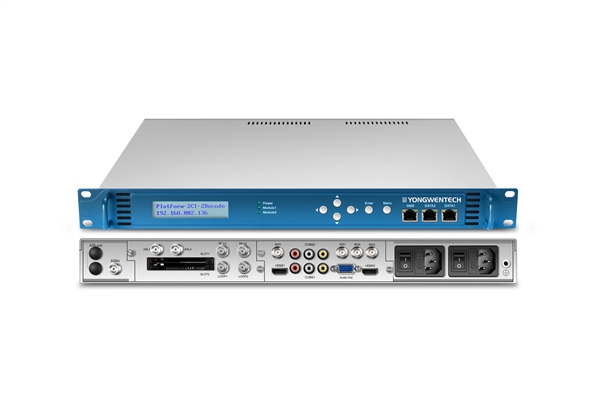

YW202HD 2 in 1 IRD is a pluggable structure design device. It supports 2 Tuners, 2 IP and 1 ASI input, 2 channels decoding output with AVS+/H.265/H.264/MPEG2 decoding format. With it’s abundant output interface, it support 4 HD-SDI, 2 HDMI, 2 CVBS, 2 AES/EBU and 2 analog stereo output. IP (2*MPTS/24*SPTS) output through Dual Gigabit Ethernet output. It also support 4K/1080P/1080I/720P/576I/480I resolution.

Key Features

  • Support CVBS/HDMI/SD/HD-SDI/AES/EBU/Analog Stereo/ASI/IP output

  • Support DRA/AC3/EAC3/AAC/MPEG audio decoding

  • Support AVS+/H.265/H.264/MPEG2 video decoding

  • Support AC3 passthrough

  • 2 independent CAM card can decrypt two programs

  • Support Biss_1/Biss_E descrambling mode

  • Support Closed caption/subtitle/Teletext function

  • Resolution can be automatically identified or manually set

  • Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD

  • B/S based web management

  • Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm

Specifications







RF input





DVB-S/S2 input

Input port

2*RF input, 2*RF loopout, 75Ω

Input frequency

950~2150MHz

Input level

-25~-65dBm

Symbol rate

1~45Msps

LNB power supply

13V, 18V, off , 22KHz

Constellation

QPSK, 8PSK

DVB-T/T2 input

Input port

2*RF input, 2*RF loopout, 75Ω

Input frequency

44~1002MHz

Input level

-20~-100dbm

Modulation mode

DVB-T: QPSK, 16/64 QAM

DVB-T2: QPSK, 16/64/256 QAM

Bandwidth

6/7/8 MHz



DVB-C input

Input port

2*RF input, 2*RF loopout, 75Ω

Input frequency

48~862MHz

Input level

45~75dbuV

Modulation mode

16/32/64/128/256QAM

ASIin/ASI output

Interface

1*BNC input, 75Ω

Interface

2*BNC output, 75Ω

Bitrate

≤200Mb/s



TS over IP

Interface

2*RJ-45, 1000 Base-T

Effective rate

900Mb/s (1000 Based-T)

IP protocol

UDP/RTP, Unicast, Multicast, IGMP(V1,2,3)

HDMI output

Interface

2*HDMI port(support 4K resolution and 1.4a frame rate)

Resolution and frame rate

4K30/1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/480P/480I

Video decoding

Decoding format

MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+

Audio decoding

Decoding format

MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3

HD/SD-SDI output

Interface

4*BNC, 75Ω

SD-SDI output

SMPTE 259M, 270Mb/s(10bit)

HD-SDI output

SMPTE 292M, 1.485Gbit/s(20bit)

Analog audio output

Interface

2*RCA, 2xXLR

Output audio format

Left, Right, Dual Mono, Stereo

Digital audio output

Interface

2*AES/EBU

Analog video output

Video interface

2*RCA, 75Ω

CVBS format

PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ

Data output

Subtitle

DVB/EBU

Teletext

DVB/EBU

Closed Caption

EIA 608, EIA 708, EIA 608-to-708

Local and remote management

Interface

1*RJ-45, 10/100 Base-T

Remote management

HTTP Web

Local management

Front pannel button and LED

Miscellaneous

Dimension (W×L×H)

450mm×350mm×44mm

Net Weight

5Kg

Power

AC 90V~250V, 50/60Hz

Consumption

24W(Power supply without LBN)
