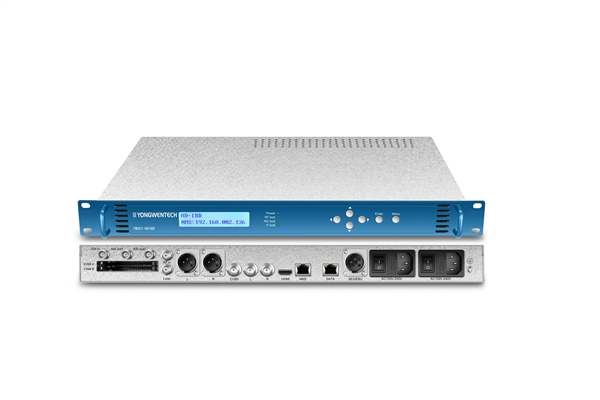

YW201 HD IRD support AVS+/H.265/H.264/MPEG2 video decoding and DRA/AC3/EAC3/AAC/MPEG audio decoding. It support RF/ASI/IP input and 1080P/1080I/ 720P/576I/480I output resolution. Key Features Support RF/IP/ASI input Support CVBS/HDMI/AES/EBU/analog stereo/ASI/IP output Support DRA/AC3/EAC3/AAC/MPEG audio decoding Support AVS+/H.265/H.264/MPEG2 video decoding 2 independent CAM card can decrypt two programs Support Biss_1/Biss_E descrambling mode Support HD and SD signal input Resolution can be automatically identified or manually set Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD B/S based web management Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm
Specifications RF input | DVB-S/S2 input | Input port | 1*RF input, 1xRF loopout, 75Ω | Input frequency | 950~2150MHz | Input level | -25~-65dBm | Symbol rate | 1~45Msps | LNB power supply | 13V, 18V, off , 22KHz | Constellation | QPSK, 8PSK | DVB-T/T2 input | Input port | 1*RF input, 1*RF loopout, 75Ω | Input frequency | 44~1002MHz | Input level | -20~-100dbm | Modulation mode | DVB-T: QPSK, 16/64 QAM DVB-T2: QPSK, 16/64/256 QAM | Bandwidth | 6/7/8 MHz | DVB-C input | Input port | 1*RF input, 1*RF loopout, 75Ω | Input frequency | 48~862MHz | Input level | 45~75dbuV | Modulation mode | 16/32/64/128/256QAM | ASI input/output | Input/output interface | 1*BNC input, 75Ω; 2*BNC output, 75Ω | Input/output bitrate | ≤200Mb/s | TS over IP | Interface | 1*RJ-45, 10/100 Base-T | Effective rate | 90Mb/s (100 Based-T) | IP protocol | UDP/RTP, Unicast, Multicast | HDMI output | Interface | 1*HDMI | Resolution and frame rate | 1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/480P/480I | Video decoding | Decoding format | MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+ | Audio decoding | Decoding format | MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | Analog audio output | Interface | 2*BNC, 2*XLR | Output audio format | Left, Right, Dual Mono, Stereo | Digital audio output | Interface | 1*AES/EBU | Analog video output | Video interface | 1*BNC, 75Ω | CVBS format | PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ | Data output | Subtitle | DVB/EBU | Teletext | DVB/EBU | Closed Caption | EIA 608, EIA 708, EIA 608-to-708 | Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | Remote management | HTTP Web | Local management | Front pannel button and LED | Miscellaneous | Dimension (W×L×H) | 450mm×280mm×44mm | Net Weight | 3Kg | Power | AC 90V~250V, 50/60Hz | Consumption | 24W(Power supply without LBN) |
|
