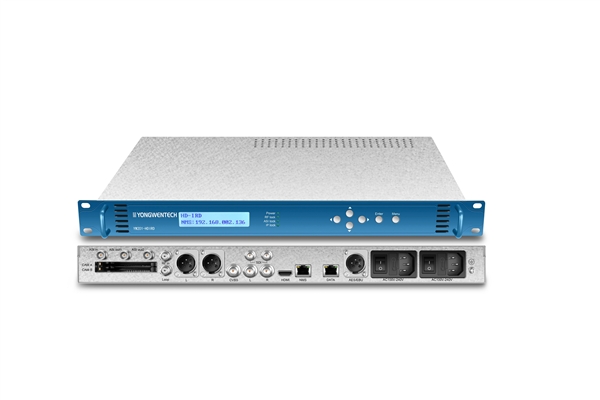

YW201 HD IRD support H.265/H.264/MPEG2 video decoding and AC3/AAC/MPEG audio decoding. It support RF/ASI/IP input and 1080P/1080I/ 720P/576I/480I output resolution. Key Features l Support RF(DVB-S/S2/S2X . DVB-T/T2. DVB -C) /IP/ASI input l Support CVBS/HDMI/SD/HD-SDI/AES/EBU/analog stereo/ASI/IP output l Support /AC3/EAC3/AAC/MPEG audio decoding l Support H.265/H.264/MPEG2 video decoding l 2 independent CAM card can decrypt two programs l Support Biss_1/Biss_E descrambling mode l Support HD and SD signal input l Resolution can be automatically identified or manually set l Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD l B/S based web management l Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm Specifications RF input | DVB-S | Input port | 1*RF input, 1xRF loop out, 75Ω | Input frequency | 950~2150MHz | Input level | -25~-65dBm | Symbol rate | 1~54Msps | LNB power supply | 13V, 18V, off , 22KHz | Constellation | QPSK Demodulator | DVB-S2/S2X input | Broadcast profile supported Normal (64800 bits) FECFRAME supported | QPSK: 1-60 Msps 8psk: 1-60 Msps | 16Apsk 1-58 Msps 32Apsk 1-58 Msps | 64Apsk 1-34 Msps | Roll-off factors from 0.05 to 0.35 | DVB-T/T2 input | Input port | 1*RF input, 1*RF loop out, 75Ω | Input frequency | 44~1002MHz | Input level | -20~-100dbm | Modulation mode | DVB-T: QPSK, 16/64 QAM DVB-T2: QPSK, 16/64/256 QAM | Bandwidth | 6/7/8 MHz | DVB-C input | Input port | 1*RF input, 1*RF loop out, 75Ω | Input frequency | 48~862MHz | Input level | 45~75dbuV | Modulation mode | 16/32/64/128/256QAM | ASI input/output | Input/output interface | 1*BNC input, 75Ω; 2*BNC output, 75Ω | Input/output bitrate | ≤200Mb/s | TS over IP | Interface | 1*RJ-45, 100/1000 Base-T | IP protocol | UDP/RTP/SRT, Unicast, Multicast | SRT output:Caller, Listener, Rendezvous | SRTinput：Caller, Listener, Rendezvous | Latency ：set program delay 20-8000ms, | Encryption: AES-128/192/256 | HDMI output | Interface | 1*HDMI | Resolution and frame rate | 1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/480P/480I | Video decoding | Decoding format | MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC) | Audio decoding | Decoding format | MPEG-1 Layer I/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/EAC3 | HD/SD-SDI output | Interface | 2*BNC, 75Ω | Support | 4:2:2 | SD-SDI output | SMPTE 259M, 270Mb/s(10bit) | HD-SDI resolution | SMPTE 292M, 1.485 Gbit/s(20bit) | Analog audio output | Interface | 2*BNC, 2*XLR | Output audio format | Left, Right, Dual Mono, Stereo | Digital audio output | Interface | 1*AES/EBU | Analog video output | Video interface | 1*BNC, 75Ω | CVBS format | PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ | Data output | Subtitle | DVB/EBU | Teletext | DVB/EBU | Closed Caption | EIA 608, EIA 708, EIA 608-to-708 | Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | Remote management | HTTP Web | Local management | Front pannel button and LED | Miscellaneous | Dimension (W×L×H) | 450mm×280mm×44mm | Net Weight | 3Kg | Power | AC 90V~250V, 50/60Hz | Consumption | 24W(Power supply without LBN) |
|
