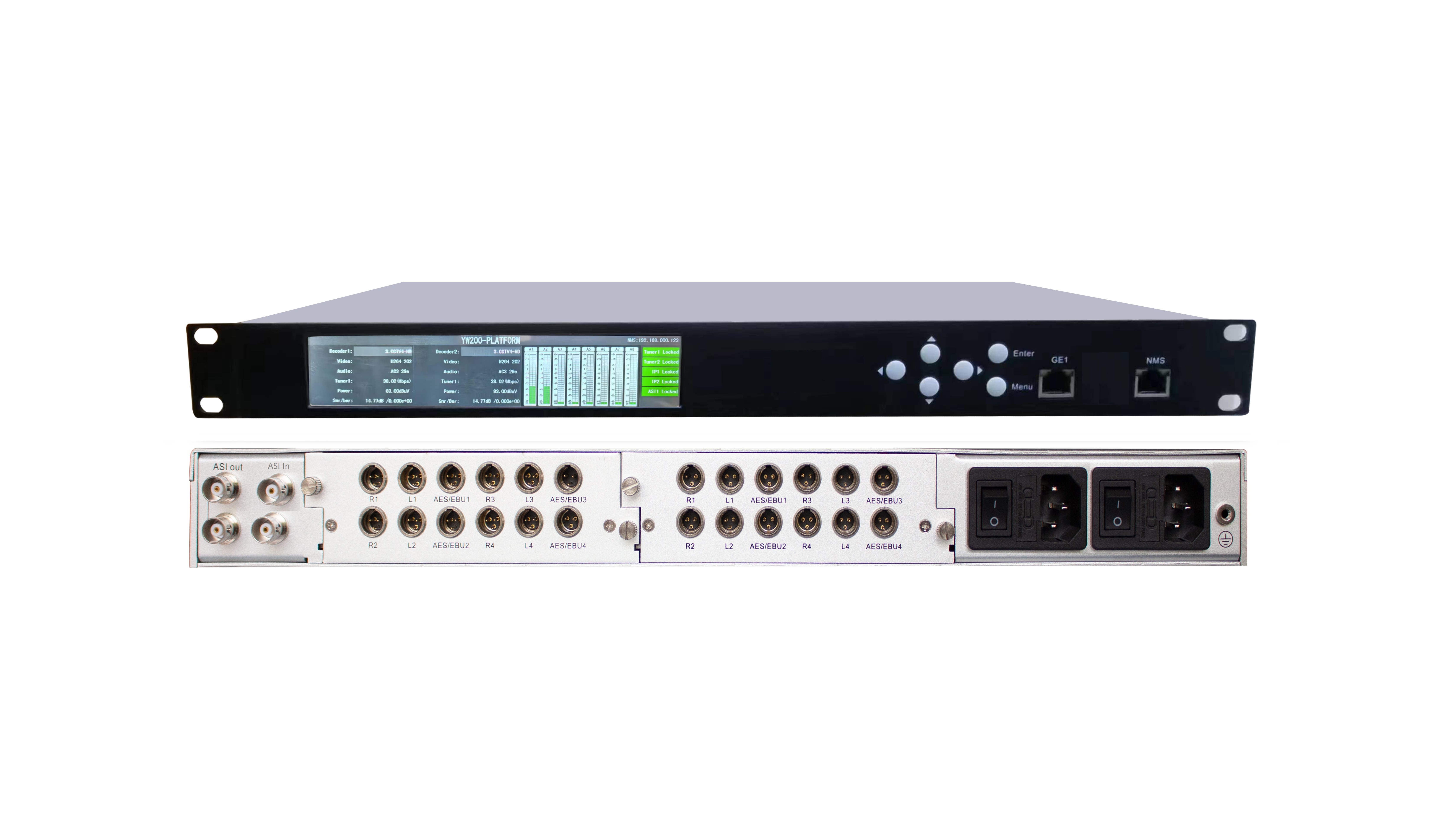

YW600-8A Audio Encoder
The YW600-8A audio encoder can simultaneously encode and multiplex 8 channels analog stereo or 8 channels digital AES/EBU within a 1RU chassis. It supports 8 channels of SPTS/1 channel of MPTS output 2 channels of ASI output 2 independent gigabit network ports as backup for IP output.
Features: l Dual power supply l Flexible combination of different types of modules l 8 channels XLR/8 channels AES-EBU l 2 channels ASI output l 100/1000 adaptive IP output l Unicast and multicast output, configurable across network segments l Web-based network management system based on B/S. l Friendly user interface and menu system enable all operation functions to be completed on the LCD screen. Specification Audio Encoding Board | Input Interface | 8 x Mini Cannon Digital Audio£¬8 x Mini Cannon stereo smisisimulationsimulationSimulation £¨Balanced input £© | Audio Format | MPEG-1 Layer II / MPEG-2 AAC-LC / MPEG-2 HE-AAC MPEG-4 AAC-LC / MPEG-2 HE-AAC / MPEG-2 HE-AAC V2 AC3 / E-AC3 | Sample Frequency | 48KHz,44.1KHz,32KHz | Ouput Bit Rate | 32Kbps~384Kbps | Amplitude-frequency | ¡À0.5dB range | Harmonic distortion | £¼0.01% | Level difference | £¼0.05dB | SNR | ¡Ý70dB | Output interface | ASI Output | 2¡ÁBNC ports 75¦¸ | ASI Input | 2¡ÁBNC ports 75¦¸ | Standard | DVB-ASI£¬EN50083-9 | VPP | 800mv¡À10% | IP output | 2x1000Base-T£¬1xMPTS¡¢8xSPTS | Local & Remote Management | Connector | 1¡ÁRJ-45£¬10/100 Base-T NMT Connector | Remote Control | HTTP Web | Local Control | Front panel buttons and LCD control | Device update | IP | Physical specifications | Volume | 450*350*44mm | Weight | Net weight 5KG | Power | AC 90V¡«250V£¬50/60Hz | Work Temperature | -10 ~ 55¡æ | Storage temperature | -25 ~ 85¡æ | Humidity | 10 ~ 95%£¨No condensation£© |
Models for Audio Encoder YW600-2A | YW600-4A | YW600-6A | YW600-8A | 2xXLR/2xAES-EBU | 4xXLR/4xAES-EBU | 6xXLR/6xAES-EBU | 8xXLR/8xAES-EBU |
|
