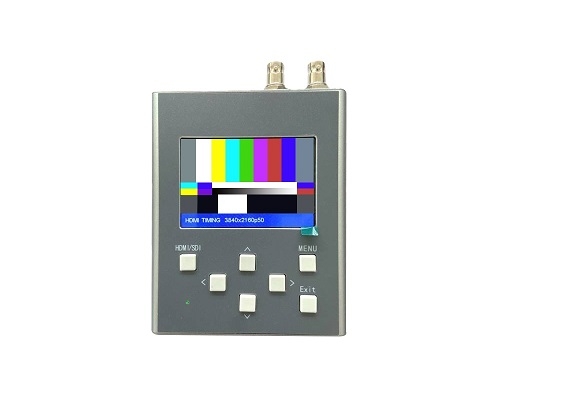

The VTSG is a programmable SD/HD / 3G-SDI and HDMI HD/UHD test pattern signal generator with both SDI and HDMI interfaces. It can be used as a signal source for video and audio testing of monitors, processors and recorders. The compact and portable VTSG can produce a resolution of up to 4K (UHD) at 60Hz and has RGB 4:4:4, YUV4:4:4, YUV4:2:2 signals, making it a "must have" tool for AV system integrators and installers. The VTSG can be easily operated from the panel, with a 3-inch LCD display that allows for other Settings. In addition, it can be controlled remotely via USB interface. l Features1, For quick inspection of HDMI and SDI devices. 2, Multiple video formats up to 4Kx2K (UHD) and frame rates up to 60fps, as well as special modes for 3D/VR inspection. 3, Supports multiple HDMI sampling structures, including RGB4:4:4, YUV4:4:4, YUV4:2:2. 4, SDI output supports SD/HD / 3G SDI up to 1080p at 60 fps. Includes 43 preset style images 5,Generate 62 predefined resolutio 6,LCD panel provides pattern preview and menu Settings display. 7,HDMI and SDI outputs have a variety of setup options. Notes: 1,Allows image customization. 2,The integrated test signal is the 10bit /4:4:4 standard for VTE testing. Replacing other standards may affect the results of VTE,automatic test values.
Specifications: Name | test pattern signal generator | Output | HDMI2.0*1 / SDI*2 | SDI output impedance | 75Ω | HDCP On / Off Test | Yes | HDMI Timing/format | Preinstall，Including HDMI 2.0 4K 50、60， 720P，1080P-3D和HDMIAutomatic timing/formatting | SDI output mode | SD-SDI / HD-SDI / 3G - SDI | No.of Pictures | 43 images | Color Space/Sampling -HDMI | RGB 444, YUV 444, YUV 422 | Frequency depth | 10、12bit | Audio frequency | 20Hz~20KHz | Power | DC12V /2A | Material | matel | Size (mm) | 108mm x 98mm x 24mm | Weight (g) | 500g |
|
