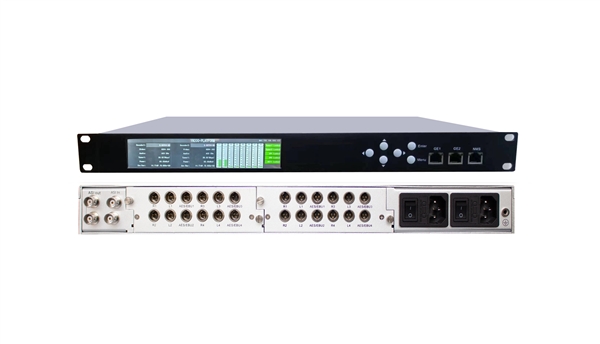

Audio decoder 8A supports 8 channels IP input, 2 channels ASI input and 8 channels audio decoding including AC3/AAC/MPEG, etc. Key Features l Support IP/ASI input l Support AES/EBU/Analog Stereo/ASI/IP OutPut l Support DRA/AC3/EAC3/AAC/MPEG audio decoding l Resolution can be automatically identified or manually set l Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD l B/S based web management Specificatons ASI input/output | ASI input | 2¡ÁBNC£¬75¦¸ | ASI output | 2¡ÁBNC£¬75¦¸ | standard | DVB-ASI£¬EN50083-9 | ASI input/output | ¡Ü200Mb/s | IP Input/output | Interface | 2¡ÁRJ-45£¬100/1000 Base-T | Effective rate | ¡Ü900Mb/s£¨1000 Base-T£© | Frame length | £¨1-7£©X188 adjustable byte | IP protocol | UDP/RTP£¬ Unicast¡¢Multicast | Audio decoding | standard | MPEG-1 layer I/II£¬MPEG-2 layer II,MPEG-2 AAC,MPEG-4 AAC LC 2-CHANNEL/5.1 CHANNEL AC3,E-AC3 | Analog audio output | Interface | 8xMiniXLR(CANNON) | Output audio format | Left£¬Right£¬Dual Mono£¬Stereo | Digital audio output | Interface | 8xMiniAES/EBU(CANNON) | Local and remote management | Interface | 1¡ÁRJ-45£¬10/100 Base-T | Remote managemen | HTTP Web | Local management | Front pannel button and LED | Device upgrade | IP or USB | Miscellaneous | Dimension (W¡ÁL¡ÁH) | 450*350*44mm | Net Weight | 5KG | Power | AC 90V¡«250V£¬50/60Hz | Consumption | 24W | Temperature | 0~45¡æ(work)£»-10~60¡æ(Storage) | Humidity | 10~90%(Non-Condensing) |
|
