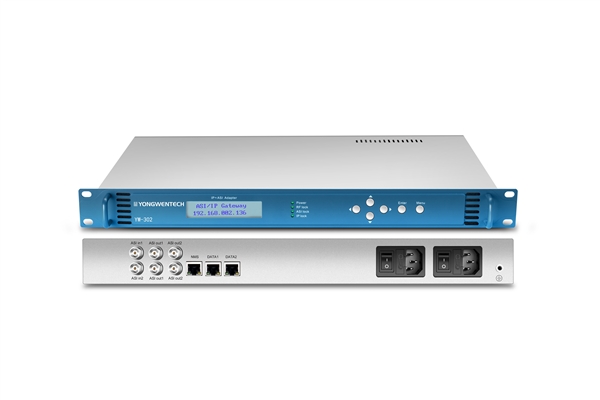

YW302 ASI/IP Bidirectional adaptor can receive the transmission stream from ASI/IP. It support 2 ASI and IP input, and support 2 ASI, 2 MPTS and 16 SPTS output, and support ASI to IP bidirection transmission. Key Features Support 2 ASI and IP input Support 2 groups of ASI, dual gigabit ethernet output Support 2 MPTS and 16 SPTS output
Specificatons ASI input/output | Input/Output interface | 2*BNC input, 75Ω; 4*BNC output, 75Ω | Standard | DVB-ASI, EN50083-9 | Output bitrate | ≤200Mb/s | TS over IP | Interface | 2*RJ-45, 10/100/1000 Base-T | Effective rate | 900Mb/s (1000 Based-T) | Frame length | (1-7)x188 adjustable byte | IP protocol | UDP/RTP, Unicast, Multicast | Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | Remote management | HTTP Web | Local management | Front pannel button and LED | Miscellaneous | Dimension (W×L×H) | 450mm×280mm×44mm | Net Weight | 3Kg | Power | AC 90V~250V, 50/60Hz | Temperature | 0~45℃(work) |
|
