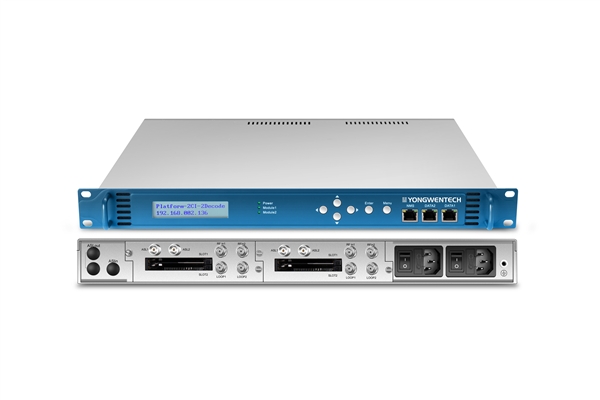

YW104 4 IN 1 IRD is a integrated receiving device which can receive the transmission stream from tuners. This 4 in 1 IRD is equipped with CAMs/CIs and can decrypt 4 tuners input programs. It support 4 DVB-C/S2/T2 Tuner inputs and IP(4*MPTS&64*SPTS) output throught dual gigabit ethernet and 4 ASI output. Key Features Support 4 tuner input(DVB-S/S2/T/T2/C) Independent dual gigabit Ethernet output ports(one for backup) Support 4 ASI output Support 4 CAM card slots, and support common CA system Support 4 MPTS and 64 SPTS output Support IP input buffer, strong ability of adapting to data burst IP output packet is adjustable: (1-7) x 188 Pluggable structure design, flexible application Support Chinese and English language Support AVS+/H.265/H.264/MPEG2 video decoding Support DRA/AC3/EAC3/AAC/MPEG audio decoding Support AC3 passthrough Support Biss_1/Biss_E descrambling mode Support Closed caption/subtitle/Teletext function Resolution can be automatically identified or manually set Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD B/S based web management Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm
Specifications RF input | DVB-S/S2 input | Input port | 4*RF input, 4*RF loopout, 75Ω | Input frequency | 950~2150MHz | Input level | -25~-65dBm | Symbol rate | 1~45Msps | LNB power supply | 13V, 18V, 22KHz or off | FEC | All proportions compatible with the standard | Constellation | QPSK, 8PSK | Roll-off Factor | 0.2, 0.25, 0.35 | DVB-T/T2 input | Input port | 4*RF input, 4*RF loopout, 75Ω | Input frequency | 44~1002MHz | Input level | -20~-100dbm | Modulation mode | DVB-T: QPSK, 16/64 QAM DVB-T2: QPSK, 16/64/256 QAM | Bandwidth | 6/7/8 MHz | Carrier Mode | DVB-T:2K/8K DVB-T2: 1K/2K/4K/8K/16K/32K | Guard Interval | DVB-T: 1/4, 1/8, 1/16, 1/32 DVB-T2: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 | FEC | DVB-T: 1/4, 1/8, 1/16, 1/32 DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | DVB-C input | Input port | 4*RF input, 4*RF loopout, 75Ω | Input frequency | 48~862MHz | Input level | 45~75dbuV | Modulation mode | 16/32/64/128/256QAM | ASI output | Interface | 4*BNC input, 75Ω | Standard | DVB-ASI, EN50083-9 | Bitrate | ≤200Mb/s | IP output | Interface | 2*RJ-45, 10/100/1000 Base-T | Effective rate | 900Mb/s (1000 Based-T) | Frame length | (1-7)x188 adjustable byte | IP protocol | UDP/RTP, Unicast, Multicast | CAM | DVB-C Interface | 4*PCMCIA slots | Decrypt | Compatible with European DVB-CSA | Built-in DVB descramble | BISS-1, BISS-E | Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | Remote management | HTTP Web | Local management | Front pannel button and LED | Device upgrade | IP or USB | Miscellaneous | Dimension (W×L×H) | 450mm×350mm×44mm | Net Weight | 5Kg | Power | AC 90V~250V, 50/60Hz | Consumption | 24W(Power supply without LBN) | Temperature | 0~45℃(work)；-10~60℃(Storage) | Humidity | 10~90%(Non-Condensing) |
|
