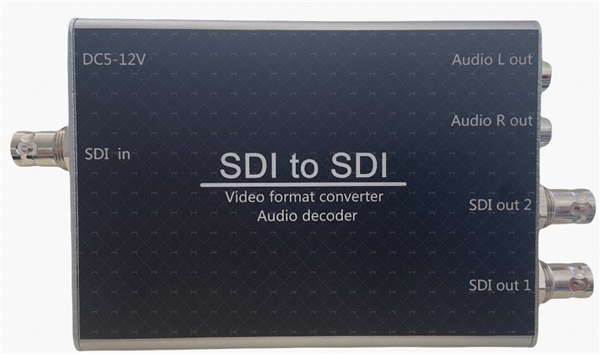

YW61 SDI to SDI video format converter

Features:

1,aluminum metal shell

2,anti-static oxidation process

3,small size, easy to install

4,Both input and output could support SDI, HD-SDI, 3G-SDI digital video signal.

5,Dc 5-24V DC wide voltage power supply to avoid improper voltage damage to the device.

6,Support sick signals, etc.

IYW61 is a broadcast level device dedicated to the conversion of single-channel digital serial interface (SDI,HD-SDI and 3G-SDI) signals to other formats of SDI signals, meanwhile the SDI loop output, easy to monitor the original signal.

The working principle is to convert the single-channel digital signal serial interface (SDI) signal into HDMI parallel data signal and then reduce the frequency again to serial SDI, without compressing the signal before the end, to ensure the original signal, so that the camera signal with SDI interface and the display terminal with SDI interface can be connected.

Setting mode：

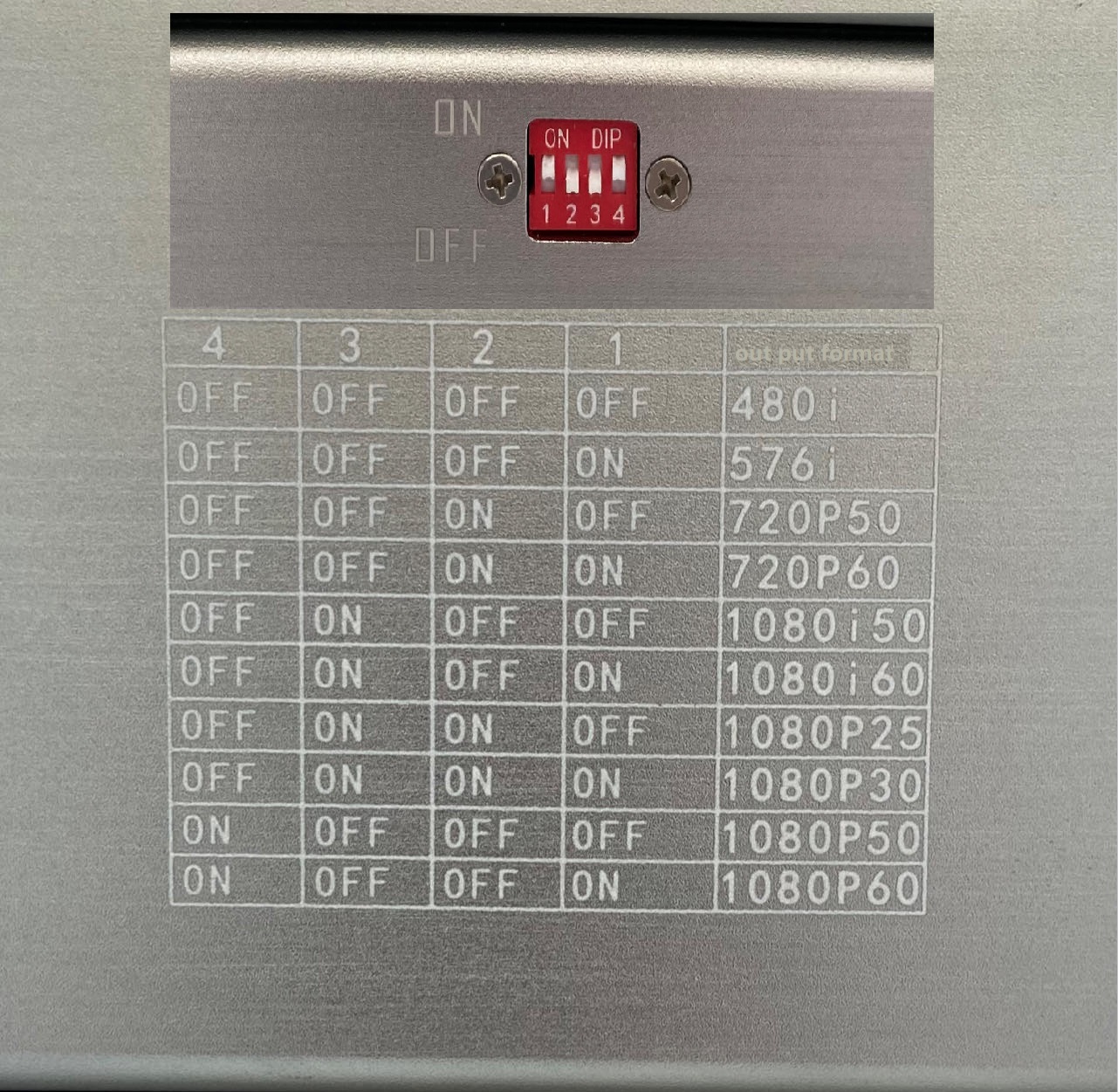

SDI output switch settings

Specification：
